TRAILER USE: | Chemical Trailer, Crude Trailer, Dry Bulk Trailer, Gas Trailer, Other Trailer |
---|---|
PART TYPE: | Trailer Lights |
MANUFACTURER: | BETTS INDUSTRIES INC. |
STYLE: | Work Light |
CONNECTION: | 2 Wire |
DIODES: | 6 Diodes |
FLANGE | No |
SIZE: | 4" | Round |
SHIPPING METHOD: | Ground Shipment |
Description
Features & Benefits

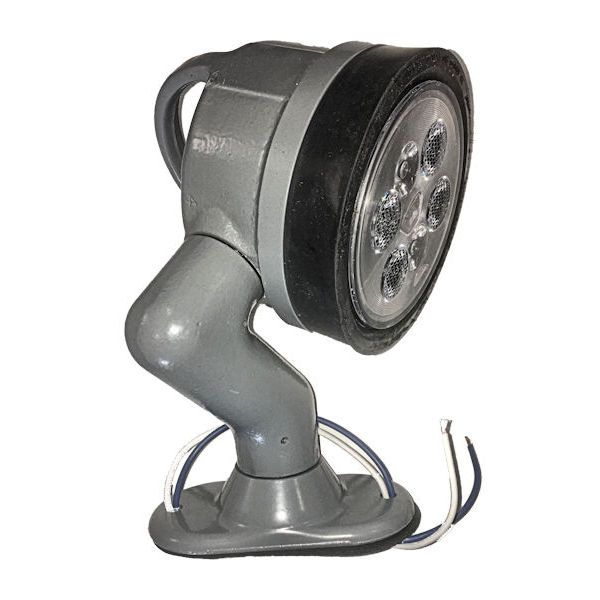

The Betts 3G02-012-01S is a sealed beam flood lamp that features a par 36 style bulb available in both incandescent and LED versions. The bulb is held in place with an EPDM retaining ring with the same Snap Seal O-Ring sealing characteristics used in all Betts lighting. Bulb versions use a clear 4466 flood or an H7616 halogen spot and a 920234-retaining grommet, LEDs use a 920775 LED bulb and a 920734-retaining grommet. This retaining grommet is different than the incandescent version due to the shape of the LED bulb. For additional bulb protection on the incandescent bulb versions, a 920071 retaining grommet has been extended to allow a 920143 clear shallow lens that provides additional protection from bulb breakage. This extended retaining grommet is not available in the LED version. Betts' work light bodies are powder-coated aluminum. Rotating LED work lights feature both horizontal and vertical rotation.
FEATURES
Lamps can be custom-specified using the part number explanation, as shown in the photo section.
-
● 3 different bulb patterns are available; Trap, Flood, and Spot (see explanation of each in the photo section)
- ● Colors: Gray (standard), White and Black
- ● The standard length of wire coming out of the base of the lamp is 12 inches, but alternate lengths are available
- ● Other plug options available upon request
Lumens | Operating Voltage | Operating Current | Power | Temperature Range |
---|---|---|---|---|
1400 | 12-24 VDC | 1.0A @ 12 VDC 0.5 A @ 24 VDC | 12 Watts | -40°F TO +185°F (-40°C TO 85°C) |
