(Previously as 808-10023)
| TRAILER USE: | Crude Trailer |
|---|---|
| PART TYPE: | Displays & Monitors |
| MANUFACTURER: | GARNET TECHNOLOGIES |
| SHIPPING METHOD: | Ground Shipment |
Description
Model 808-P2

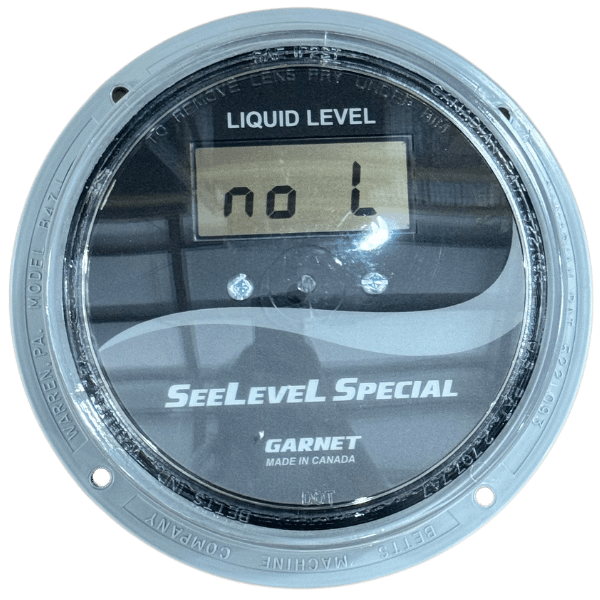

The SeeLeveL Special 808-P2, a versatile digital continuous-level measurement system with enhanced features, now sports a new label. The upgraded design incorporates additional features, including displaying temperature and battery condition for the upcoming 810-TX sender bar, integrated driver module for the MultiRack, and short-circuit protection on alarm outputs. The system interfaces with the 810-X or the 810-TX sender bar, showcasing its broad applicability in fluid level monitoring, especially in crude oil transport and similar contexts involving flammable liquids. Additional systems can be integrated with the SeeLeveL Special to improve functionality and meet customers' operational needs. See additional support products below.
The 808-P2 uses a magnetic reed switch sender bar to detect the float magnetic field. The system provides a stable resolution of 8 mm (1/3”) and the fixed position of the reeds eliminates any need for recalibration during the life of the gauge.
Features & Benefits
SeeLeveL Special ™
-
● Designed for tank trucks hauling flammable liquids.
- ● The built-in alarm can activate a horn and/or light on the truck for overfill protection. Two alarm outputs are available, one for a horn warning and the other for shutdown.
- ● Push button on the side of the enclosure will disable a re-settable alarm.
-
● The sender bar and display are self-powered allowing the operator to see their levels even when the tank trailer is removed from the truck.
-
● LCD display backlight for easy night viewing while connected to 12 Vdc power.
