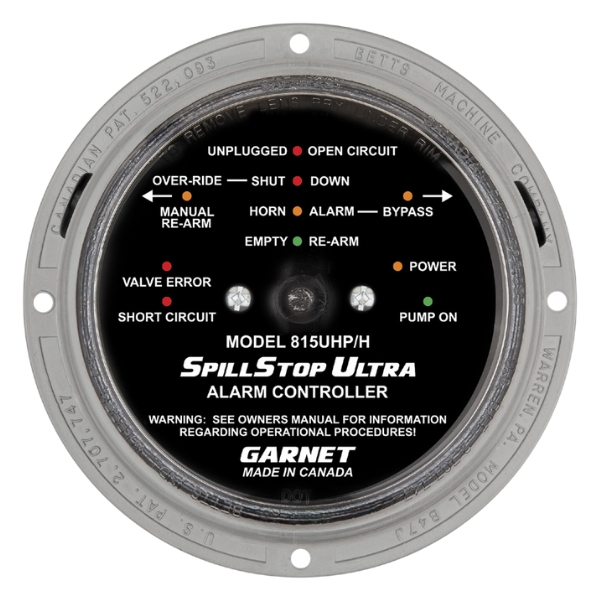

SPILL STOP, ULTRA, GARNET
| TRAILER USE: | Crude Trailer |
|---|---|
| PART TYPE: | Displays & Monitors |
| MANUFACTURER: | GARNET TECHNOLOGIES |
| SHIPPING METHOD: | Ground Shipment |
Description
Click the link above to view the list of parts and the spec sheet for the Garnet Ultra Hydraulic Spill Stop Alarm Controller. Contact a parts specialist if you have any questions.
Features & Benefits
Increases Safety & Easy to Install/Operate
Monitors and displays the alarm status of the SEELEVEL™ 808-P2 or 810-PS2 level gauges and hose pressure sensors. Provides automated control of hydraulic-driven pumps for overfill protection during loading. Prevents spills and damage due to blown hoses by shutting downloading if excessive hose pressure is detected. The single bypass silences the warning horn and permits the pump to restart to allow hose clean-out without risking tank overfill. The bypass is automatically reset during unloading to remove the human error factor so the operator is not required to reset the system to maintain spill protection. Monitors the wiring from the gauge to the controller for open and short circuits. Prevents risks that can endanger human health and cause environmental devastation
SPILLSTOP ULTRA Features
-
● Assists truck operators in applications where the fluid is
loaded with a hydraulic pump. - ● Front panel LED lights display complete operational
status. - ● The rugged enclosure can withstand harsh roads and
-
field environments and be mounted inside or outside.
-
● Each 815-UHP/H accommodates one compartment using
alarm points from one SEELEVEL™ gauge. -
● Operation ambient temperature from -40 to +60 ˚C
(-40 to +140 ˚F)
